19C self-locking with power lamp

Short Description:

`Product Model:  Q19C-1.

`Type:Power lamp,Momentary.

`Material:304 stainless steel housing,PA66.

`Protection level: IP67, IK10, IP40.

`LED voltage:3V-220V.

`Service temperature range:-20℃—55℃.

`Lamp bead life: 40,000 hours.

`Mechanical life: 30 times/min,500,000 times.

`Electrical parameters: 5A / 250VAC.

`Contact resistance:≤ 50Ω.

`Insulation resistance:≥1000MΩ.


  • :
  • Product Detail

    FAQ

    Product Tags

    Product Characteristics Q19C-1.

    1. Flame retardant material, safety guarantee

    2. Stainless steel case, strong and reliable.

    3. Contains PC button, cost-effective, silicone waterproof ring

    4. High performance, anti-corrosion and dustproof.

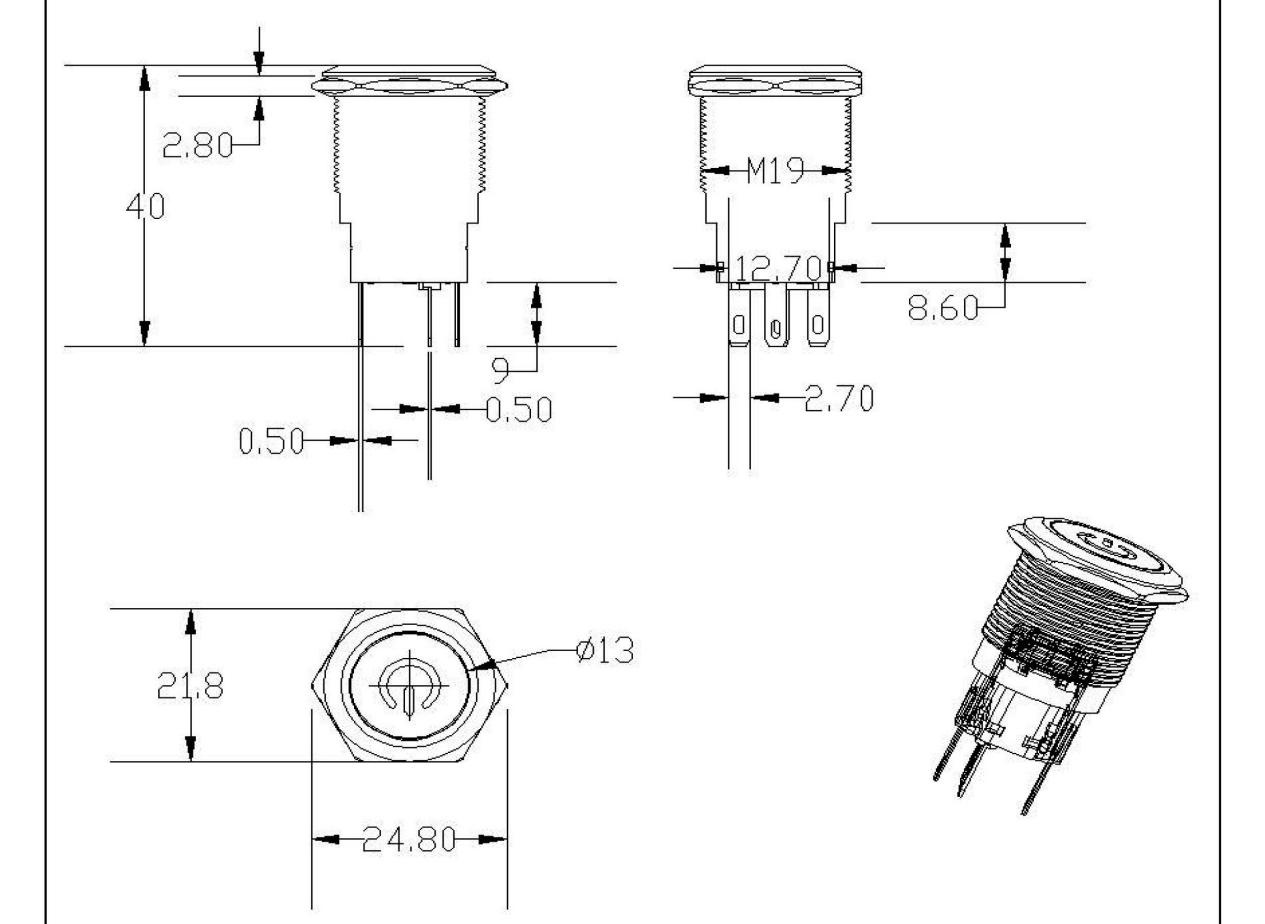

    Product Drawing

    asd
    sd

    Application Areas Q19C-1.

    The products can be used in automobile manufacturing, transportation, safety equipment, electronics industry, household appliances, medical equipment, home appliances industry, starter, access control and so on.

    Package picture

    asd
    asd
